Tag Archives: signing limits

Vendor invoice recording (Part 9)

01 Saturday Jul 2017

Posted by Ludwig Reinhard in Accounts Payable

≈ 1 Comment

Tags

invoice, invoice recording, purchase requisition, signing limits, workflow

The purchase requisition and invoice workflows used in the previous post assigned the approval tasks to the cost center manager of the person that requested the goods or services irrespective of the singing limit of that manager.

To incorporate the signing limits into the purchase requisition workflow approval step, I tried to modify this step in a way that it refers to a hierarchy. Unfortunately, this hierarchy selection did not allow me starting the workflow from the requester, as illustrated in the next screen print.

205_p9_0015

Applied to the example that was used in the previous post, the available ‘start from’ selection options do not allow assigning the approval task to Susan’s cost center manager unless Susan would submit the purchase requisition herself.

205_p9_0020



Setup Modification A:
To get this issue resolved, the purchase requisition workflow has been setup as a purchase requisition line review workflow, because this line-workflow type allows to be started from the requester. For details, please see the next screen prints.

205_p9_0021 205_p9_0025

notesign In prior versions, the standard purchase requisition workflow could be started from the requester. This option has, however, been removed and as a result, a purchase requisition line-item workflow needs to be used to achieve the same.

To get the line-item workflow running, it must be incorporated into the ordinary purchase requisition workflow. This is achieved through the following setup.

205_p9_0030



Example:
In the following, a purchase requisition for a training course with a total value of $10000 is submitted to the workflow. Because of the changes that have been implemented, the approval task is now assigned to the marketing executive Julia because she has a sufficiently large signing limit. For details, please have a look at the following screen prints.

205_p9_0035 205_p9_0040 205_p9_0045



Setup Modification B:
In line with the changes that have been made to the purchase requisition approval step, also the invoice review & approval matching step has been modified in a way that it starts from the workflow owner.

205_p9_0060

notesign Similar to what has been shown in the previous posts; Phyllis the accountant has been setup as the workflow owner and has been incorporated into the position hierarchy. For that reason, the correct person that is required for approving the invoice deviations can be identified.



Example:
If we continue the example and record a vendor invoice for $10900, that is an invoice with a price deviation of >5%, the review & approval task is directly assigned to Charlie, the president, as he has a sufficiently large signing limit.

205_p9_0070 205_p9_0075





Summary Expense Related Invoice Workflows:
This post ends the series on expense related vendor invoices. Based on what has been shown in the previous posts, it can be summarized that Dynamics AX/365 for Operations ships with a powerful and flexible workflow engine that can handle various invoice review and approval scenarios.

Setting up the different workflow steps might not always be as easy and straightforward as one can find this in specialized workflow add-on’s to Dynamics AX/365 for Operations. In addition, the previous posts showed that the pending vendor invoice form needs some modifications in order to allow users identifying the current workflow step and responsible at a glance.

Against the background of those ‘disadvantages’, the reader should be able to assess whether those enhancements can be built into Dynamics AX/365 for Operations oneself for the same or a cheaper price than a specialized invoice workflow add-on.

Vendor invoice recording (Part 6)

06 Tuesday Jun 2017

Posted by Ludwig Reinhard in Accounts Payable

≈ Comments Off on Vendor invoice recording (Part 6)

Tags

invoice, invoice recording, project expense invoice, signing limits, workflow

This post extends the previous one in a way that a project related expense invoice is recorded, which requires an explicit review of the project manager. To realize this, an additional project manager review step (PM review) is included in the invoice workflow. For details, please see the next illustration.

205_p6_0005

Please note that the expenditure reviewer group ‘approver’ has been assigned to the PM review step…

205_p6_0010

… which refers to the project manager as the one that has to review the invoice.

205_p6_0015

To ensure that the workflow can also handle ordinary vendor invoices, the PM review workflow step is setup with an automatic action that completes the PM review step if no project number is provided. In other words, the PM review step is skipped for ordinary invoices.

205_p6_0020

For the illustration of the next example, it is important to note that Susan Burk has been assigned as project manager for the project that is addressed in the vendor invoice.

205_p6_0025

205_p6_0030

With the project number specified in the invoice, the workflow is consequently assigned to the project manager (Susan Burk) after the orderer (Nicole holiday) has reviewed the invoice in a first step.

205_p6_0035

If a project number is not specified, the additional review step is skipped and identical to what has been shown in the previous post.



This post ends the section on manually entered expense invoices that need to be reviewed and approved by two or more people.

At this point it can preliminary summarized that the standard Dynamics AX/365 for Operations workflow functionalities appear able to handle a wide variety of expense invoice scenarios. From the author’s perspective, the only thing missing is an overview form that provides more information about the status, the current assignee, etc. of a workflow. That is mainly because the standard workflow history form does – from a finance and accounting perspective – not provide users with sufficient information that can be accessed at a glance.

The next posts will continue this series by showing how to integrate purchase requisitions for expense related invoices, which is also a common scenario in many companies. Till then.

Vendor invoice recording (Part 5)

01 Thursday Jun 2017

Posted by Ludwig Reinhard in Accounts Payable

≈ Comments Off on Vendor invoice recording (Part 5)

Tags

invoice, invoice recording, signing limits, workflow

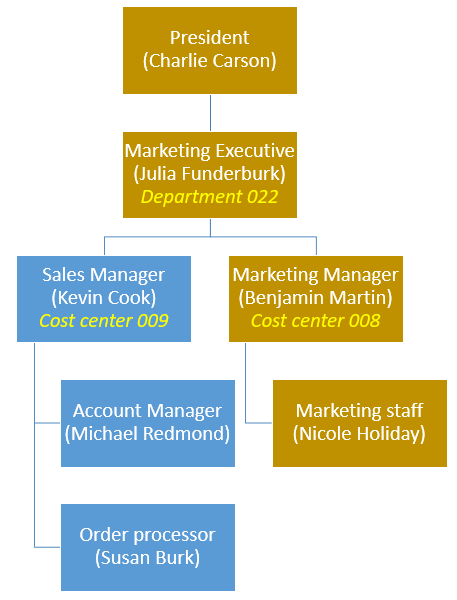

This post builds upon the previous one in a way that Michael Redmond, the account manager, now orders the marketing materials and that the invoice needs to be approved by his line manager Kevin Cook, as exemplified in the following organizational chart.

205_p5_0005new

To realize this, another position hierarchy (LRE Signing 2) has been specified, which includes Kevin Cook as one of the responsible approvers.

205_p5_0010new

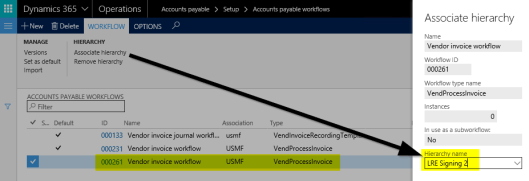

This newly setup position hierarchy is then linked to a newly created invoice workflow…

205_p5_0015new

… that is setup in the very same way as the previously used one except for the activation of the workflow, which is based on the condition that employee 000050 (Michael Redmond) is entered in the financial dimension worker field.

205_p5_0020new

After making those modifications, two invoices are recorded. The first one that has Nicole Holiday specified in the financial dimension worker field and a second one that has Martin Redmond specified.

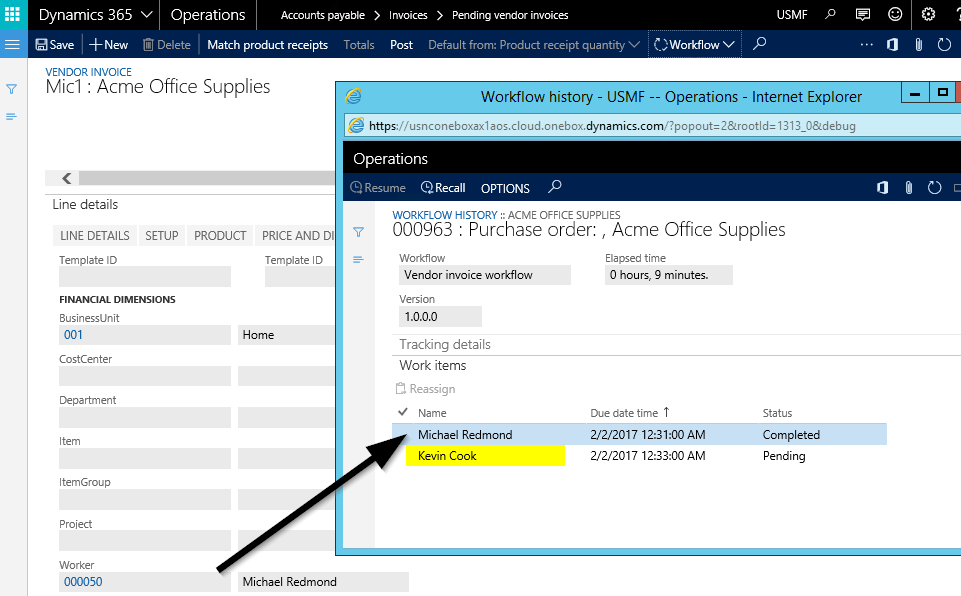

In line with the setup of the position hierarchies and the workers assigned, the correct line managers are always identified as the ones that need to approve those invoices. For details, please have a look at the following screen prints.

205_p5_0025new 205_p5_0030new

From what has been shown in this and the previous post, it can be summarized that the standard application can handle even complex multi-branch signing limit structures even though this requires the setup of separate position hierarchies and invoice workflows.

Another issue that has not been discussed so far is the fact that typically numerous accountants record and initiate the invoice workflow. This results in different workflow originators that are not incorporated into the position hierarchy shown above. To avoid that one has to setup numerous position hierarchies and invoice workflows, one single accountant – in the example Phyllis – can be setup in the position hierarchies. If the very same person is specified as the workflow owner…

205_p5_0035new

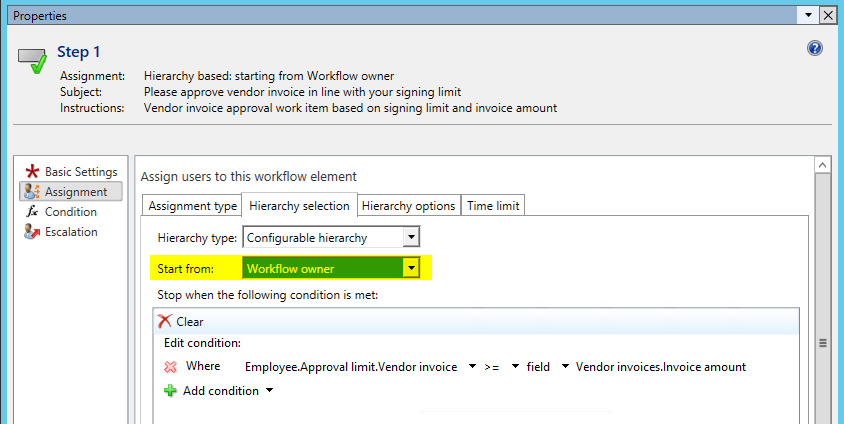

…from which the workflow starts, this issue can be overcome.

205_p5_0040new

The next post continues this one by investigating how project related invoices can be incorporated into invoice workflows that make use of signing limits. Till then.

Vendor invoice recording (Part 4)

24 Wednesday May 2017

Posted by Ludwig Reinhard in Accounts Payable

≈ 5 Comments

Tags

invoice, invoice recording, signing limits, workflow

In the previous posts, the responsible for approving the vendor invoice was identified by the approver expenditure reviewer group, which was specified in the approval workflow step. For details, please see the next screen-print.

205_p4_0005new

While the previously used setup allows the identification of a single invoice approver, it does not help much in companies that make use of hierarchical signing limits.

How hierarchical signing limits can be incorporated into the invoice workflow will consequently be investigated in this post.

The next screen prints show the changes that have been made to the workflow setup in order to get the hierarchical signing limits incorporated.

205_p4_0010new

For that purpose, the second workflow step (singing limit based approval) has been changed and does no longer refer to the assignment type participant but rather to the assignment type hierarchy, as exemplified in the next illustration.

205_p4_0015new

A major issue in regards to the selection of a hierarchical assignment is that the hierarchy can either start from the workflow owner – which refers to a ‘static’ user– or to the workflow originator.

205_p4_0020new

Provided that an accountant – who is not included in the managerial hierarchy of the persons involved in the review and approval process – initiates the workflow, i.e. acts as workflow originator, the line manager of the accountant and not the manager of the orderer would get the approval workflow step assigned. To avoid such wrong assignments, a new position hierarchy (LRE signing) is setup, which starts with the accountant (Phyllis Harris) that records the invoice in Dynamics AX/365 for Operations. The following hierarchical levels are determined by the operative management (Benjamin Martin), the executives (Julia Funderburk) and finally the president of the unit (Charlie Carson). For details, please see the next screen print.

205_p4_0025new

This position hierarchy needs then to be associated with the workflow through the associate hierarchy button shown in the next illustration.

205_p4_0030new

Once this is done, the condition for identifying the correct person to approve the invoice can be specified.

205_p4_0035new

The next setup required consists of specifying the signing rules for the different positions respectively levels. The rules used for the following examples are shown in the next figure.

205_p4_0040new

With the modified workflow and the signing limits in place, an invoice for a total of $47500 is recorded in the pending vendor invoice form by Phyllis, the accountant.

205_p4_0045new

To clearly differentiate the workflow from what has been shown in the previous posts, only the orderer (Nicole Holiday) is entered in the financial dimension worker field. A cost center has, however, not been specified.

205_p4_0050new

Irrespective of whether and which cost center is entered, Dynamics AX/365 for Operations finds the correct approver by successively working through the signing limits that have been setup. The next screen print shows the users that are addressed by the workflow for the $47500 invoice.

205_p4_0055new

As one can identify from the previous illustration, Nicole Holiday is the first user addressed by the workflow in order to review the vendor invoice.

Thereafter, Benjamin Martin, Julia Funderburk and Charlie Carson need to approve the invoice before it can be posted. Even though Benjamin Martin and Julia Funderburk do not have a sufficiently large signing limit, they still need to approve the invoice because of the workflow setup.

warningsignganzklein The successive assignment of the invoice approval can be cut short by defining that only the last user retrieved, that is the one with a sufficiently high signing limit, shall get the task assigned. The next screenshot exemplifies this.

205_p4_0060new

This slight modification in the workflow setup results in a situation where Benjamin Martin and Julia Funderburk are skipped from the approval task for the $47500 invoice, which is directly assigned to the person with the appropriate signing limit (Charlie Carson).

205_p4_0065new

Now let’s modify the example in a way that the materials are ordered by Michael Redmond and need to be approved by his line manger (Kevin Cook).

205_p4_0070new

For that reason, another vendor invoice, this time for $2000 is entered in the vendor invoice workbench. Different from what has been shown before, this time, Michael Redmond – the orderer – is entered in the worker financial dimension field.

205_p4_0075new

After Michael Redmond reviewed the invoice, the invoice approval is assigned to Benjamin Martin and not Kevin Cook, which can be identified from the next screen print.

205_p4_0080new

The underlying reason for this outcome is the position hierarchy that has been assigned to the workflow and which does not include Kevin Cook. For details, see further above.

At this point, one might think to simply add Kevin Cook in the signing position hierarchy. The major problem with this approach is that Dynamics AX/365 for Operations currently only allows a single relationship between the different positions included in the hierarchy. In other words, position hierarchies that include more than a single branch, such as for Kevin Cook (the sales manager) and Benjamin Martin, (the marketing manager) that both report to Julia Funderburk, (the marketing executive), require some additional setups, which will be explained in the next post.
