Part 2: Invoice search AX7
Now let’s have a look at the invoice search capabilities in the new Dynamics AX 7.

Option 1: Invoice journal inquiry form
The first option available to search for customer invoices is the invoice journal inquiry form. In this form, a new search field has been introduced that does – on first sight – not seem to be able to search for invoices by using wildcards. Example:

An alternative to searching for the invoice number through the new search field is using the new filter options illustrated in the next two screen-prints.


Compared to the AX2012 filter options, those two filters seem inferior, as the use of wildcards is (currently) not possible.

Because of the numerous search results that I received from my prior searches I tried using the advanced filter options in addition …

… and noticed that the use of wildcards in the advanced filter form is possible and helps identifying the invoice I am searching for quickly. For details, please have a look at the following two screen-prints.
Note: A major difference and advantage compared to AX2012 is the ability to search for the customer name …
… and several other criteria in the standard search field available.

Option 2: Customer list page
An alternative to searching for invoices in the invoice register inquiry form is an invoice search via the “all customers” list page. Searching for invoices via the customer list page follows the same principles as in AX2012. That is, you need to apply an advanced filter first by adding joined table relations…


…before you can apply the search filter and identify the customer with the respective invoice record.

Once you have identified the respective customer account you need to apply a second filter in order to extract the invoice information you are looking for.

Option 3: Open customer invoice list page
Invoice searches in the open customer invoice list page work the same as in AX2012 except for the way how you enter filters. Please note that this form will show you only open invoices and if the invoice you are searching for is already paid, no invoice is filtered.

Option 4: Collections window
Searching for a specific customer invoice via the collection windows – note the new AX7 term “aged balances” – is identical to the search in AX2012.

That is, you have to use an advanced filter first to get your customer selected …

…and then apply a second filter in the collections form for the very customer you have selected.

Option 5: Customer service form
Searching for customer invoices in the customer service form works exactly as in AX2012.

Interestingly, AX7 supports the use of wildcards in the customer service form to identify the customer record … … and the invoice one is looking for.

Option 6: Enterprise Portal search functionality
As the Enterprise Portal is not an element of the new AX7 system, searching for invoices through the Enterprise Portal is not possible anymore.

Option 7: Enterprise search functionality
What has been said for the Enterprise Portal search also applies for the global enterprise search. That is, as the global enterprise search functionality is not part of the new AX7 version it cannot be used for invoice searches anymore.

If you have some additional hints on how to search for customer invoices in AX2012 and/or AX7, feel free to leave a comment on this site to help also other users that might have similar problems. Thank you very much and till next time.

Especially employees working in the Sales and/or Accounts Receivable department regularly need to search for customer invoices and related customer payments. Within this post I want to show you different ways how one can search for customer invoices in order to give customers a quick feedback about their invoices and their account status.
This post is separated into two parts. Within the first part I will show you different ways how to search for customer invoices in AX2012. The second part does the same but for the new Dynamics AX7.
Note: The AX7 version used for this post is the so-called RTW (Ready to Web) version that was released on 24. February 2016.

Part 1: Invoice search AX2012
For the following illustrations and examples, I will search for customer invoice no. “CIV-000015”.

Option 1: Invoice journal inquiry form

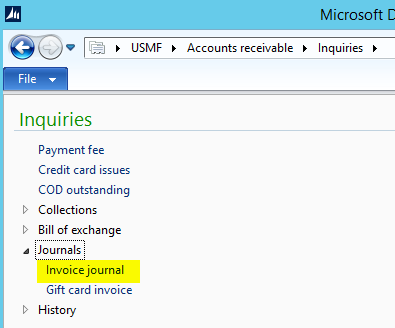

A first option to search for customer invoices is the invoice journal inquiry form available in the Accounts Receivable module.

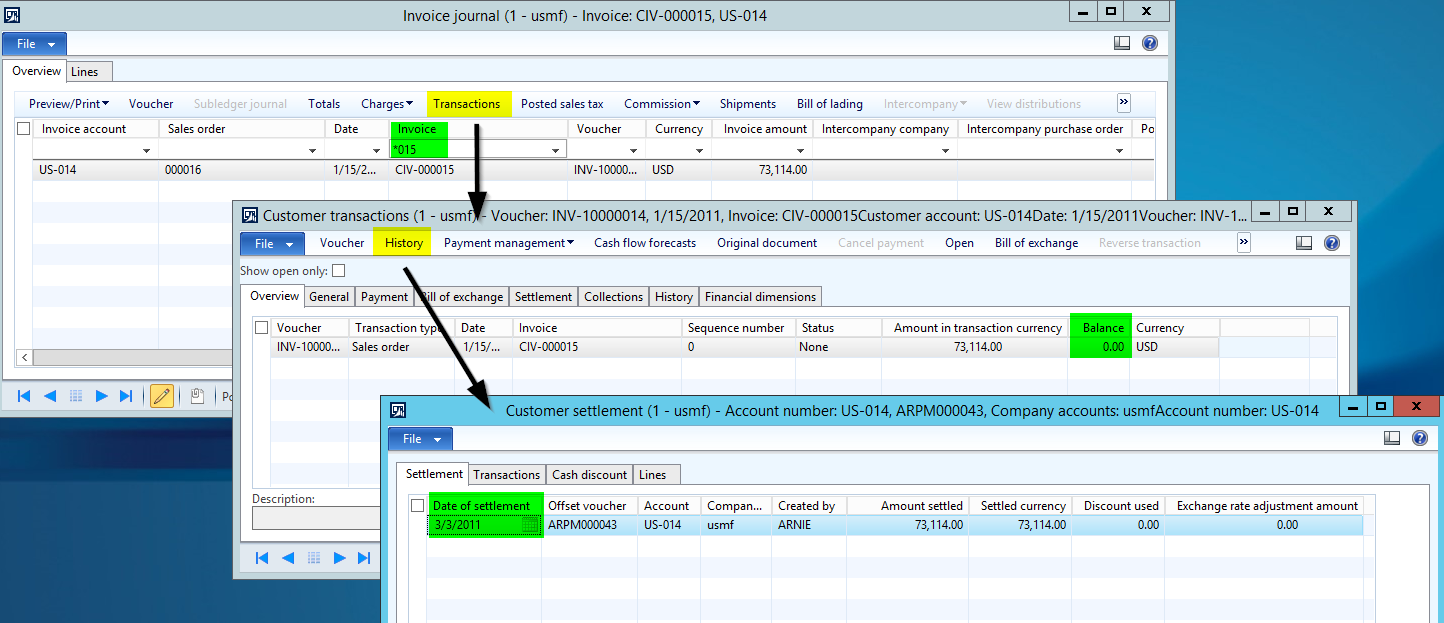

Searching for invoices through this form allows an easy and fast drill down into the customer transactions and the related customer settlements form as exemplified in the next screen-print.

Please be aware of the following limitations (disadvantages) of this form:

• The invoice journal form does not show you customer invoices that have been created through the project module,
• It is not possible to search for the customer name in this form.

Option 2: Customer list page

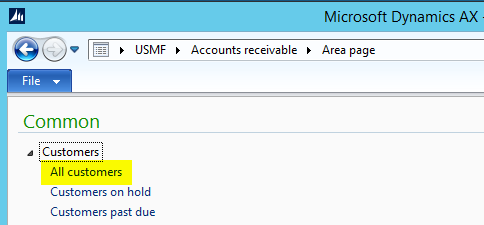

An alternative option to search for customer invoices is the “all customers” list page.

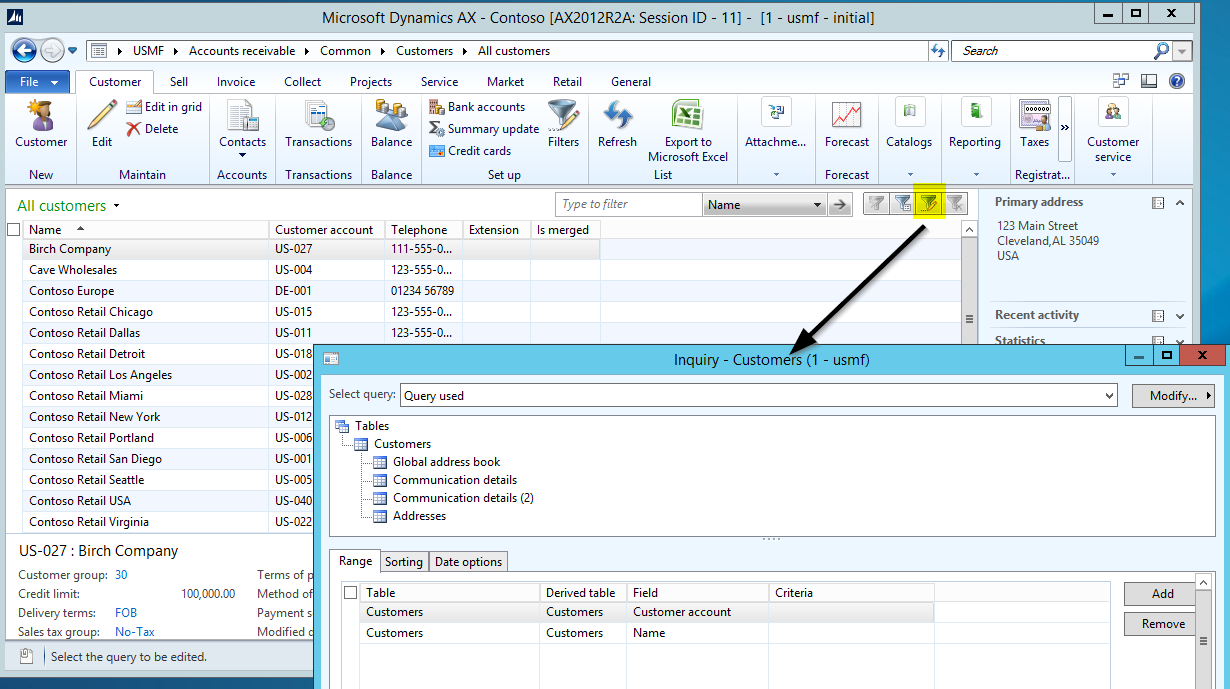

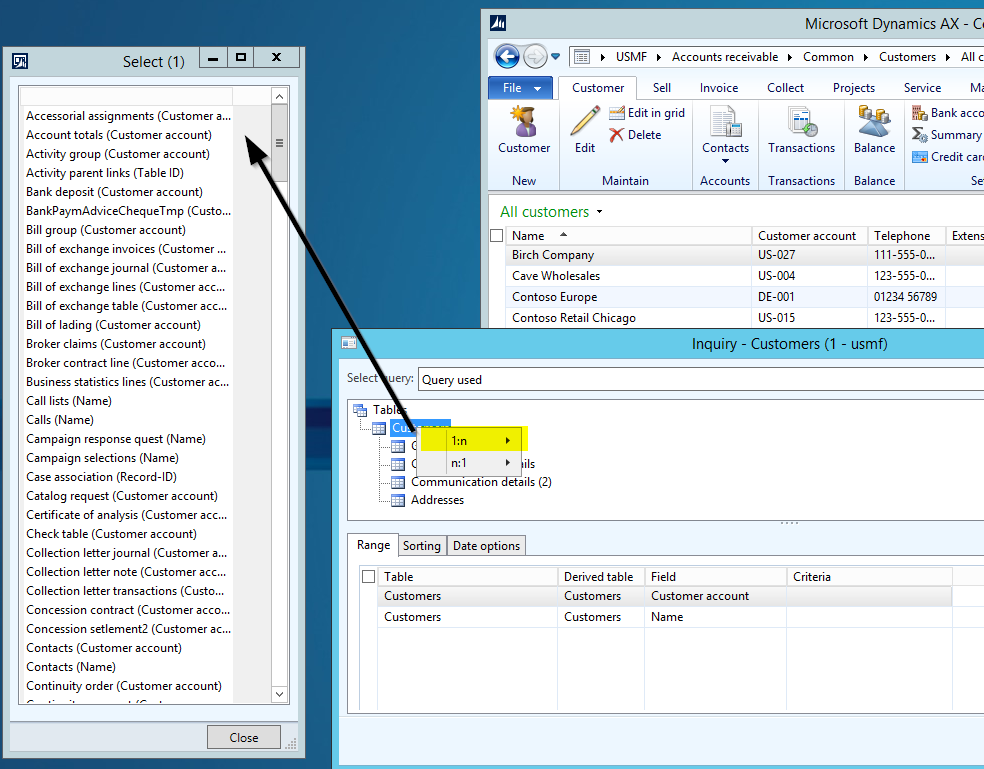

In this form you can make use of the advanced filter options to search for invoice numbers. Please see the next screen-prints for an example.


If you are using the all customers form to search for customer invoices you have to be aware of the following:

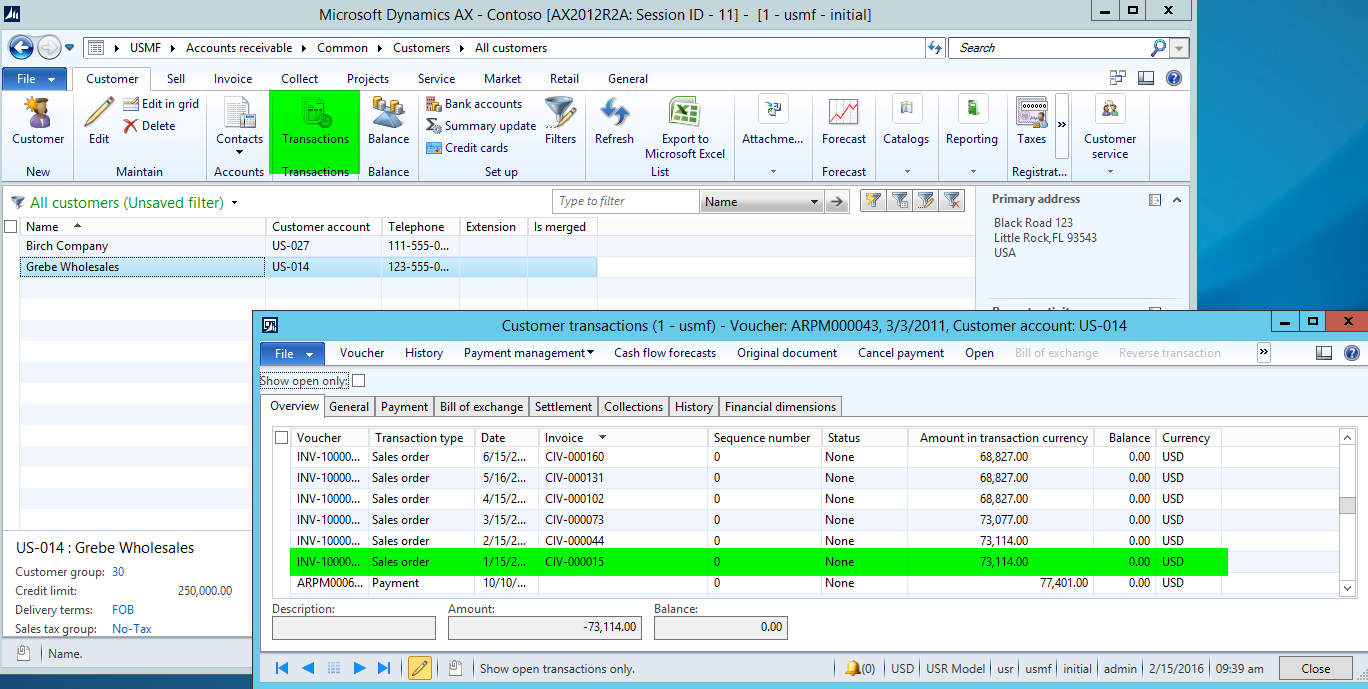

• The invoices you are looking for are not shown in the customer list page directly. You rather need to open the customer transactions window and apply a second filter.

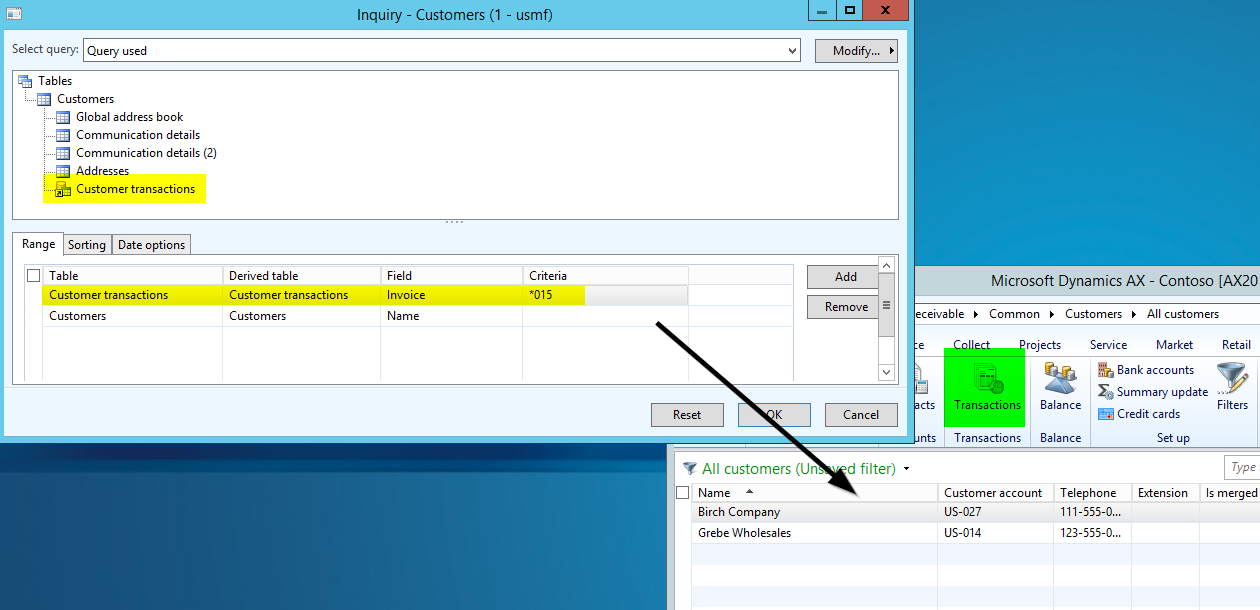

• An invoice search in the customer list page may not always result in a single outcome. The next screenshot shows you an example where two customer records have been found that include an invoice ending with “*015”.

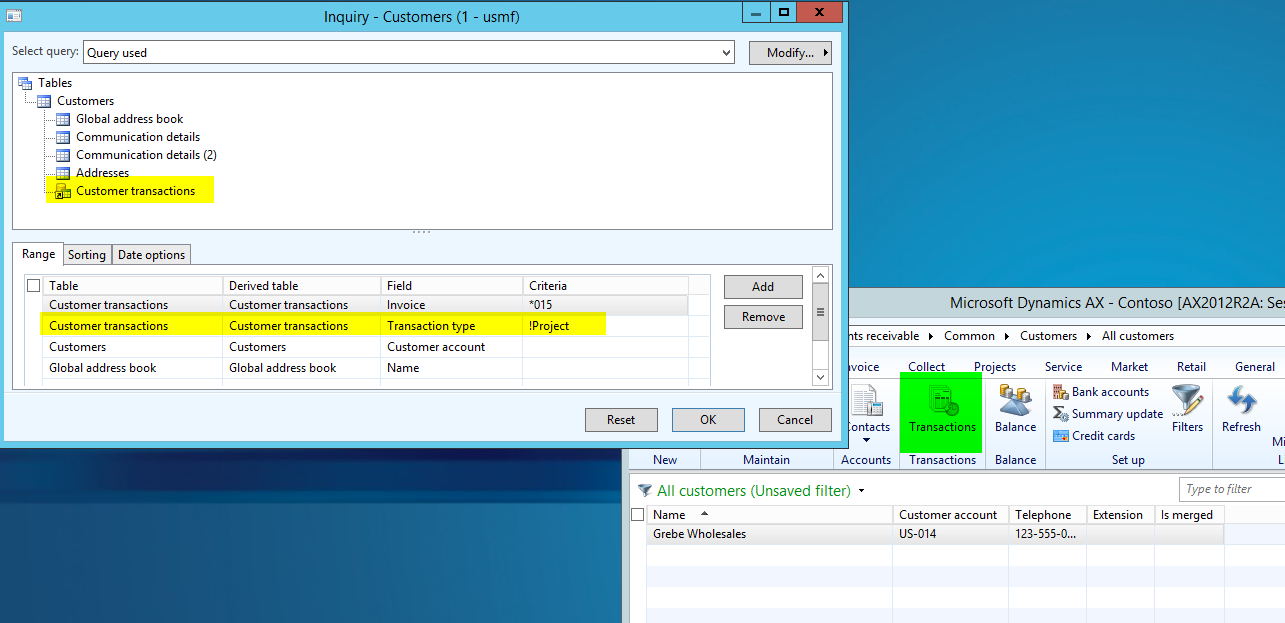

Note: The underlying reason for this search result is a project invoice ending with “015” that has been recorded for another customer. A small modification of the filter applied can help you overcoming this issue. Please see the next screen-print.

Option 3: Open customer invoice list page

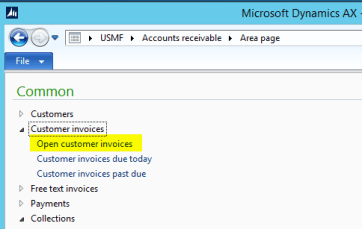

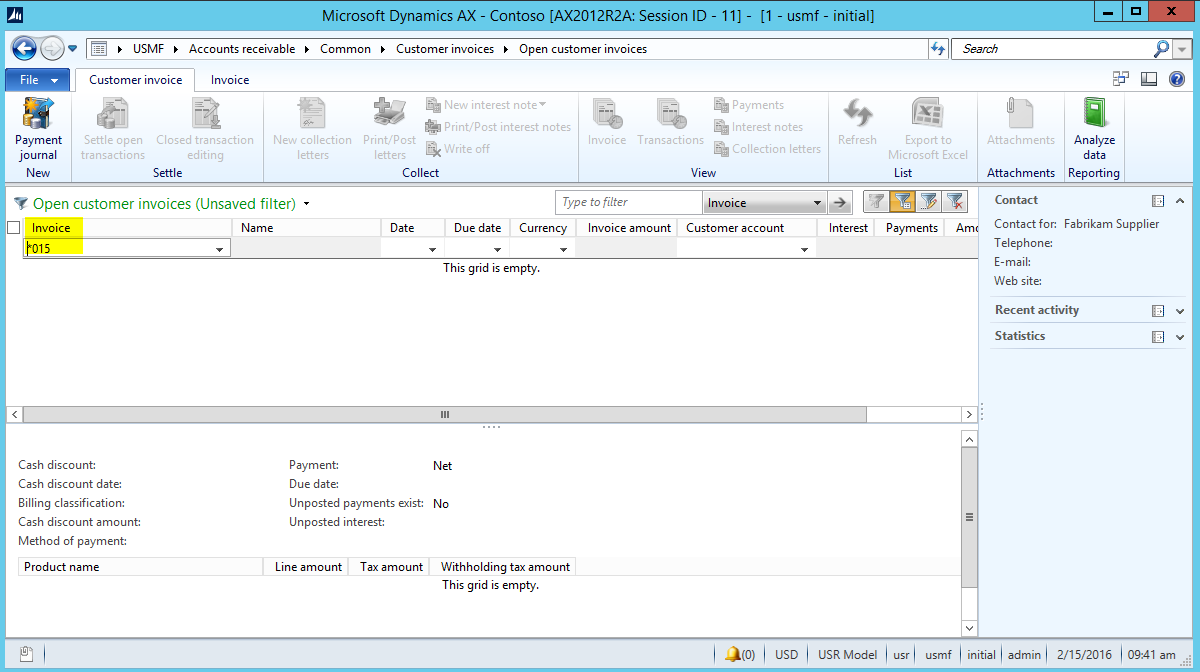

The third option available that allows searching for customer invoices is the open customer invoices form.

This form will, however, only show you open invoices. If the invoice is already paid, no invoice is filtered in this form.

Option 4: Collections window

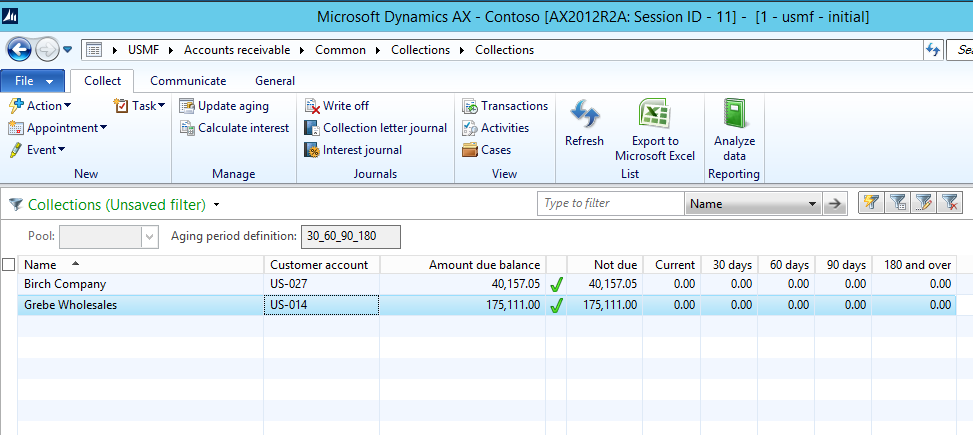

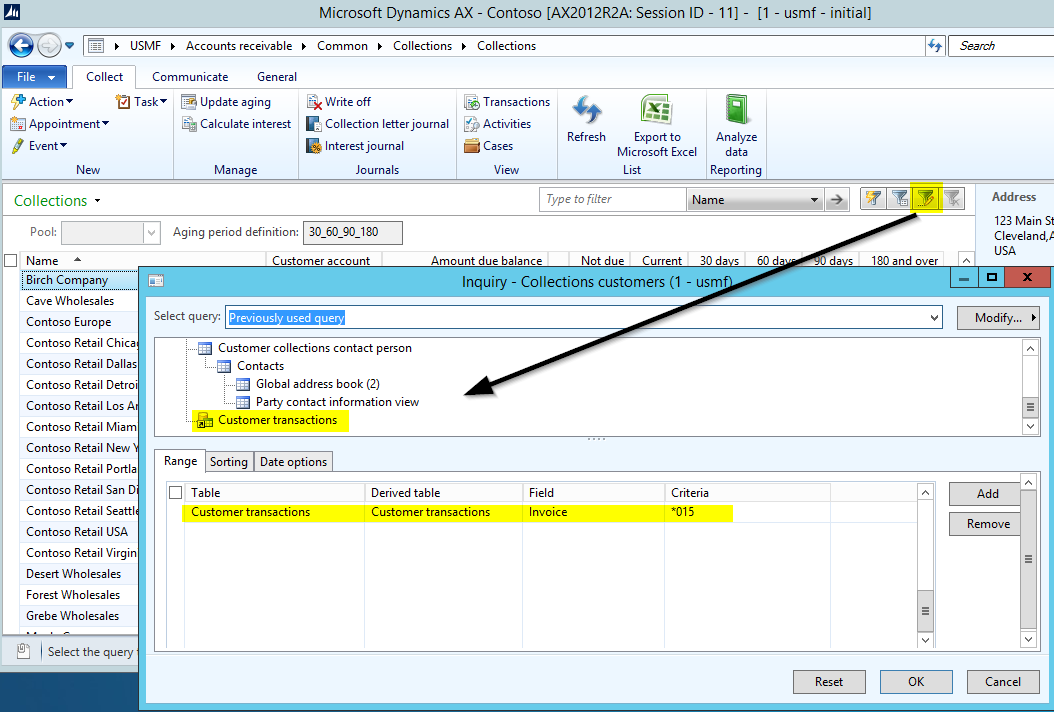

The fourth option to search for customer invoice is the collections list page. Users can apply advanced filters in this list page similar to the one shown previously for the “all customers” list page (option 2).

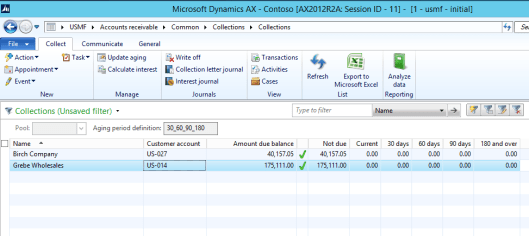

What has been mentioned for the customer list page above also applies here. That is, your search might result in more than a single customer record and …

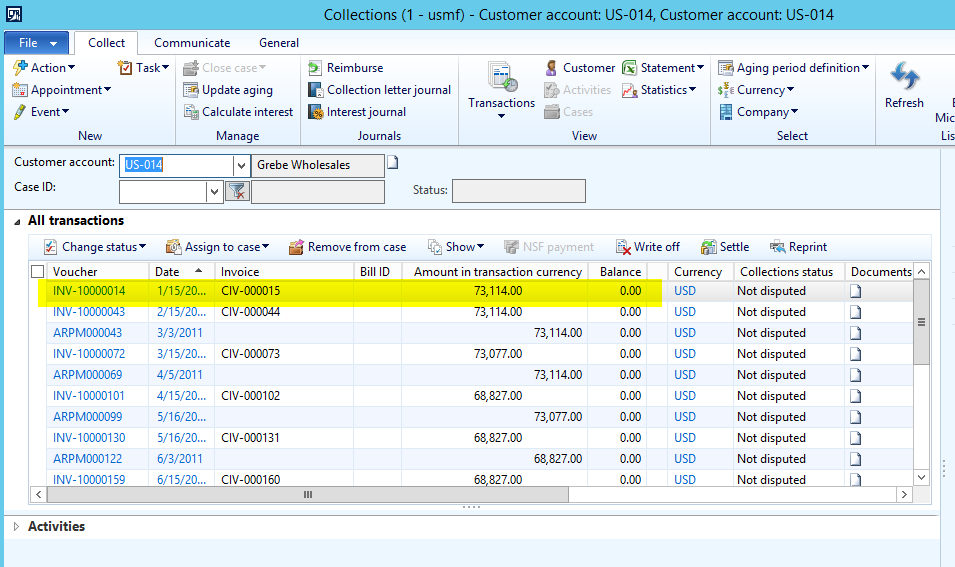

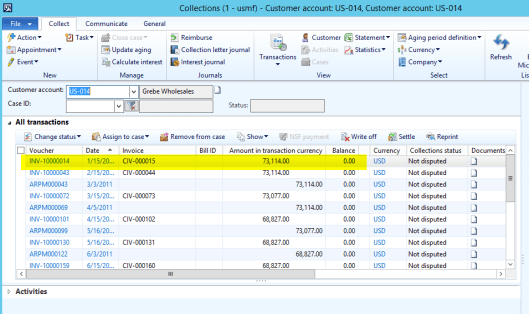

…you might need making use of a second filter in the collections details form to find the invoice you are looking for.

Note: In my example I even had to change the transaction filter via the “show” button to identify the invoice I was looking for as this invoice had already been settled.

Option 5: Customer service form

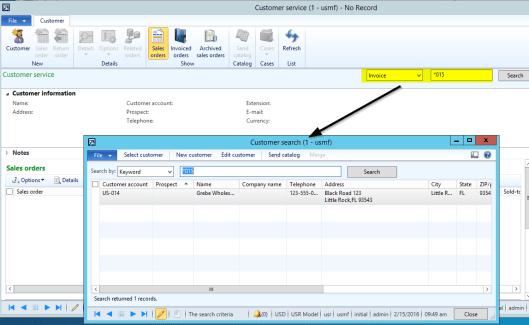

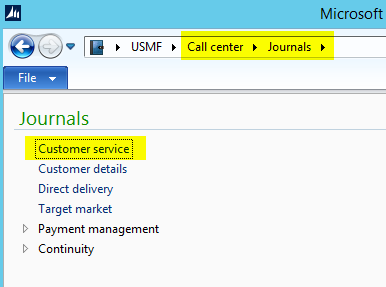

If you are using the Dynamics AX retail features you can alternatively make use of the invoice filter functionalities available in the customer service form of the Call Center module. Please see the next screen-prints for an example.

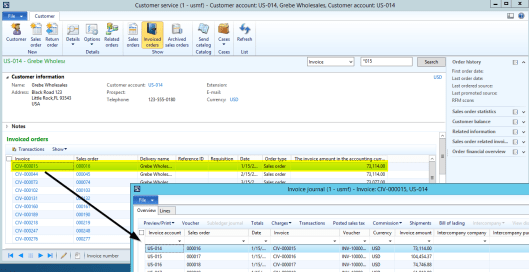

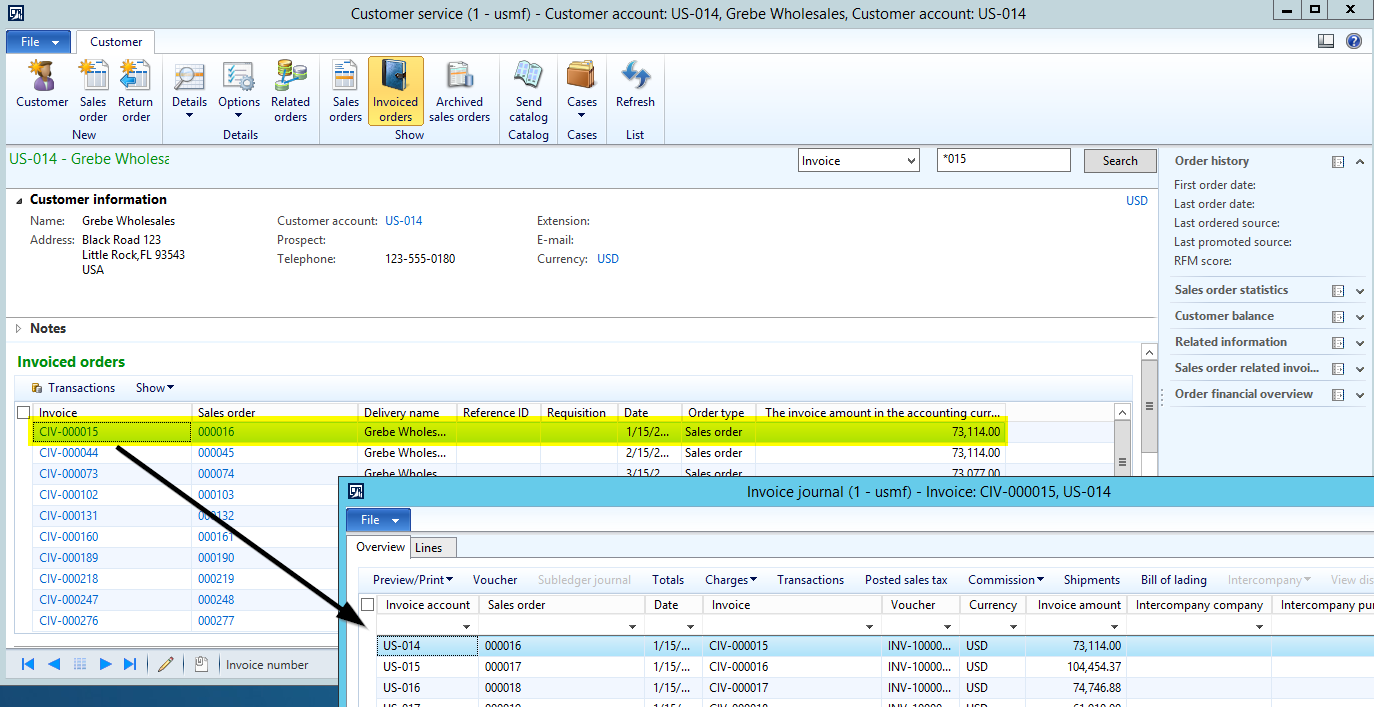

Please note that you can easily open the customer invoices through clicking on the hyperlinks provided in this form. Example:

Note: The customer service form does not include project invoices as the invoice journal inquiry form shown above (option 1).

Option 6: Enterprise Portal search functionality

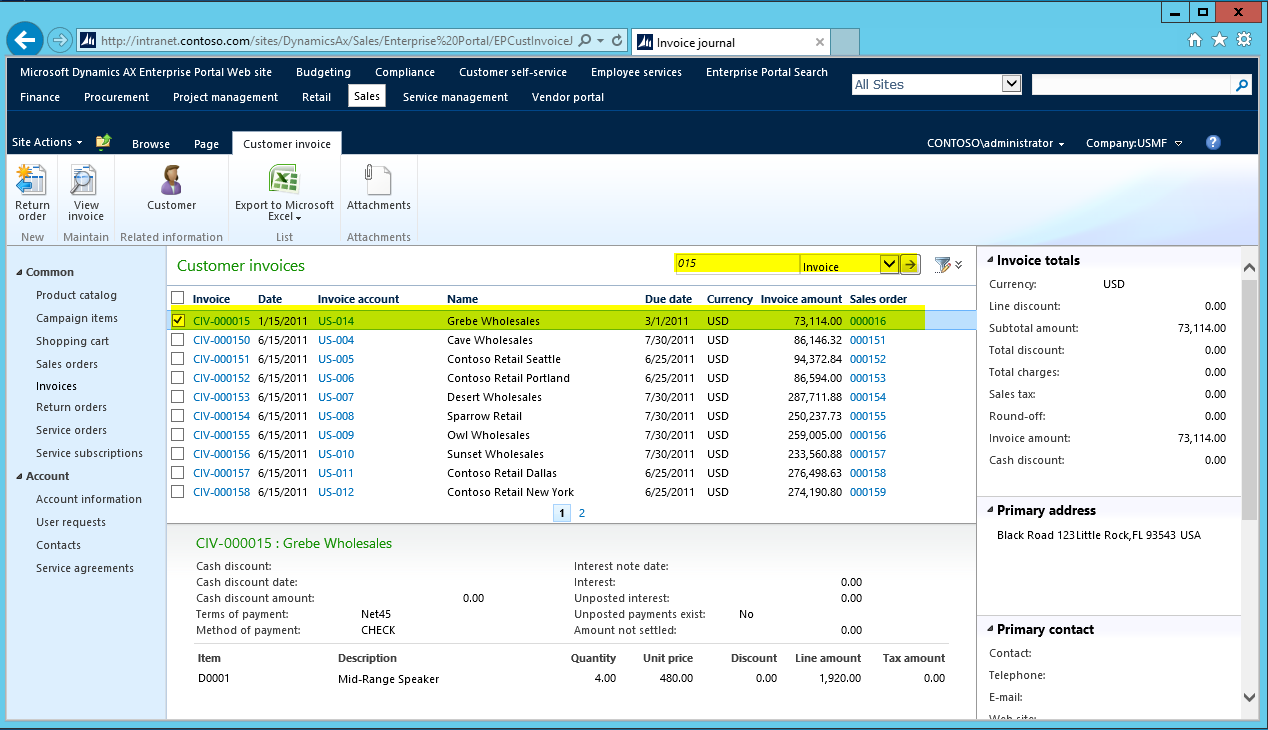

Another way to search for customer invoices is the invoice journal site available in the Dynamics AX Enterprise Portal.

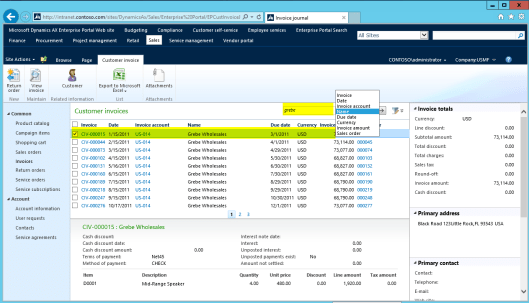

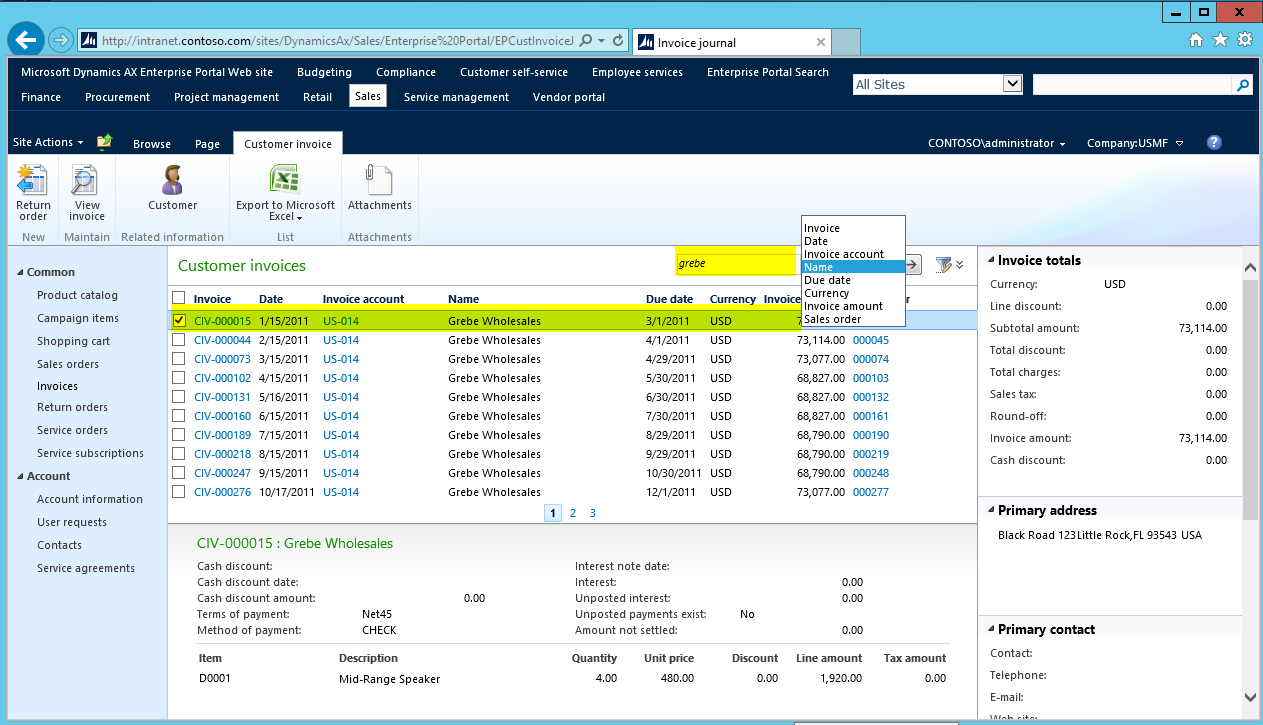

A major advantage of this site are the manifold search options available (please see the next screen-print for details).

Please note that the limitations mentioned for the customer service form and invoice journal inquiry form do also apply if you are searching for invoices through this Enterprise Portal site.

Option 7: Enterprise search functionality

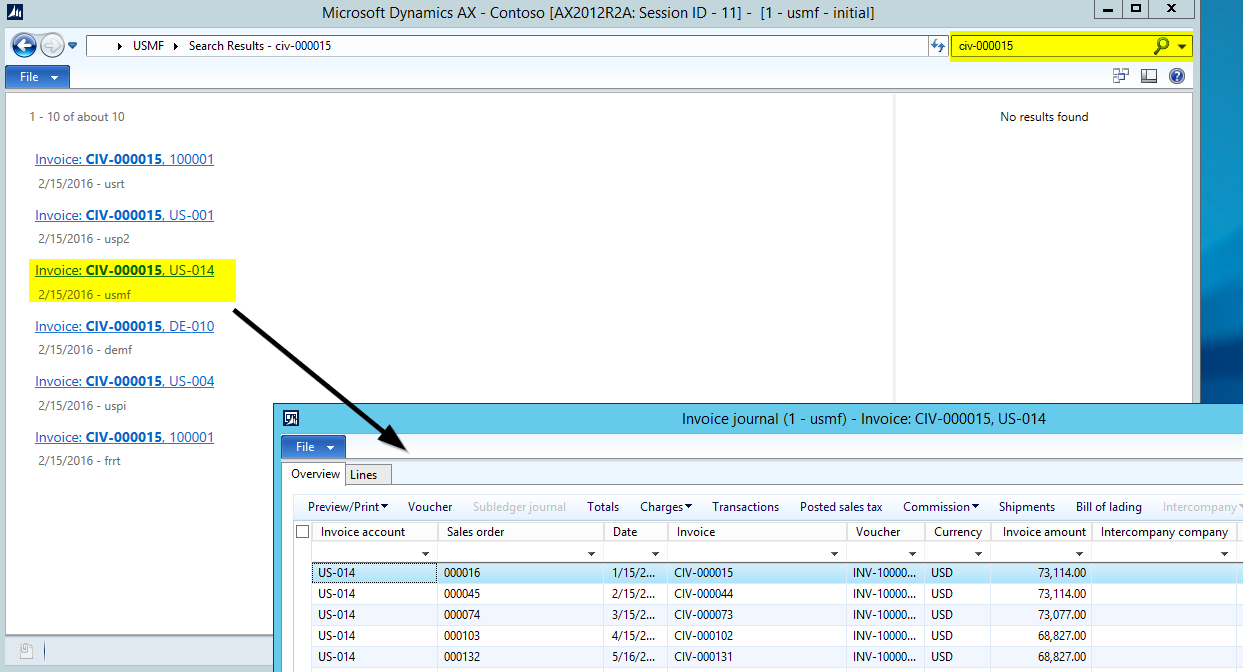

A final option to search for customer invoices is the so-called global search functionality. Example:

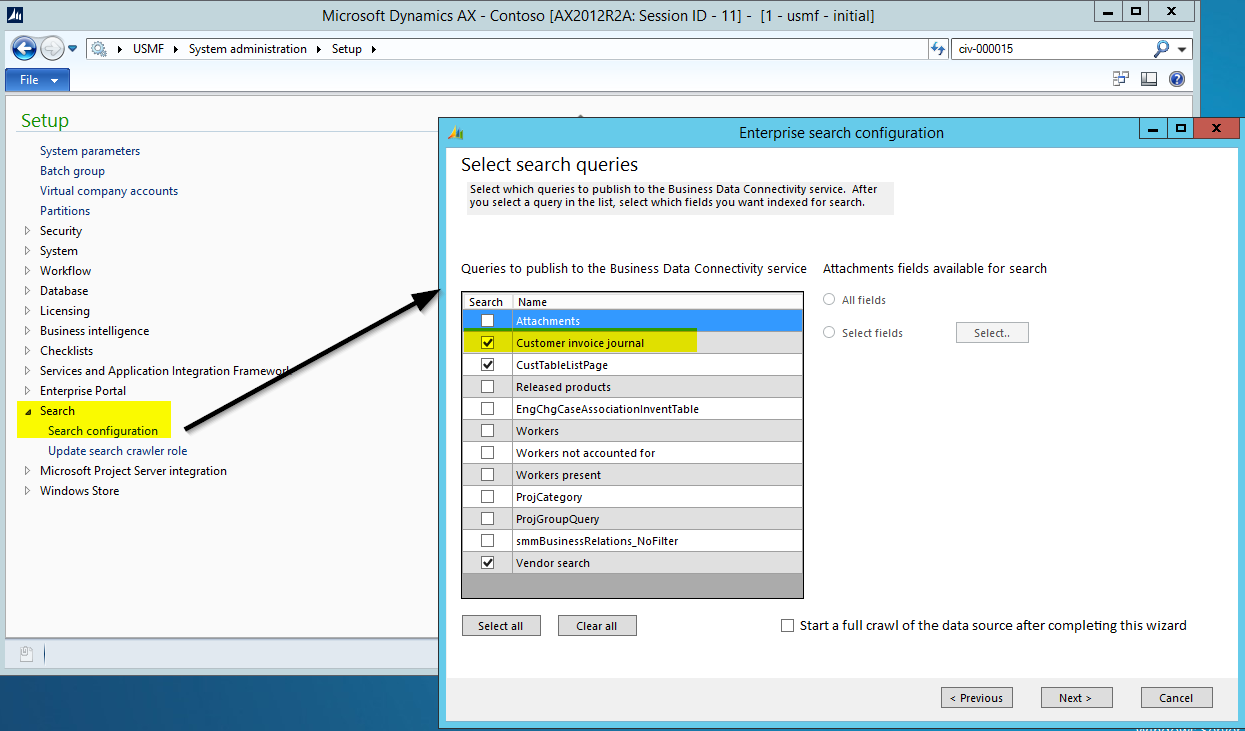

The major advantage of this search feature is that you are able to define what you want to search for through an individualized search configuration.

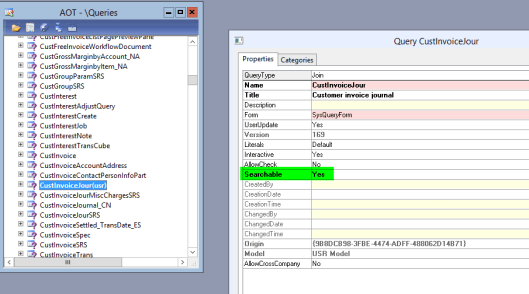

Before you are able to make use of this feature you have to make sure that your search queries do have the searchable property activated and that they do not infringe any best practice rule.

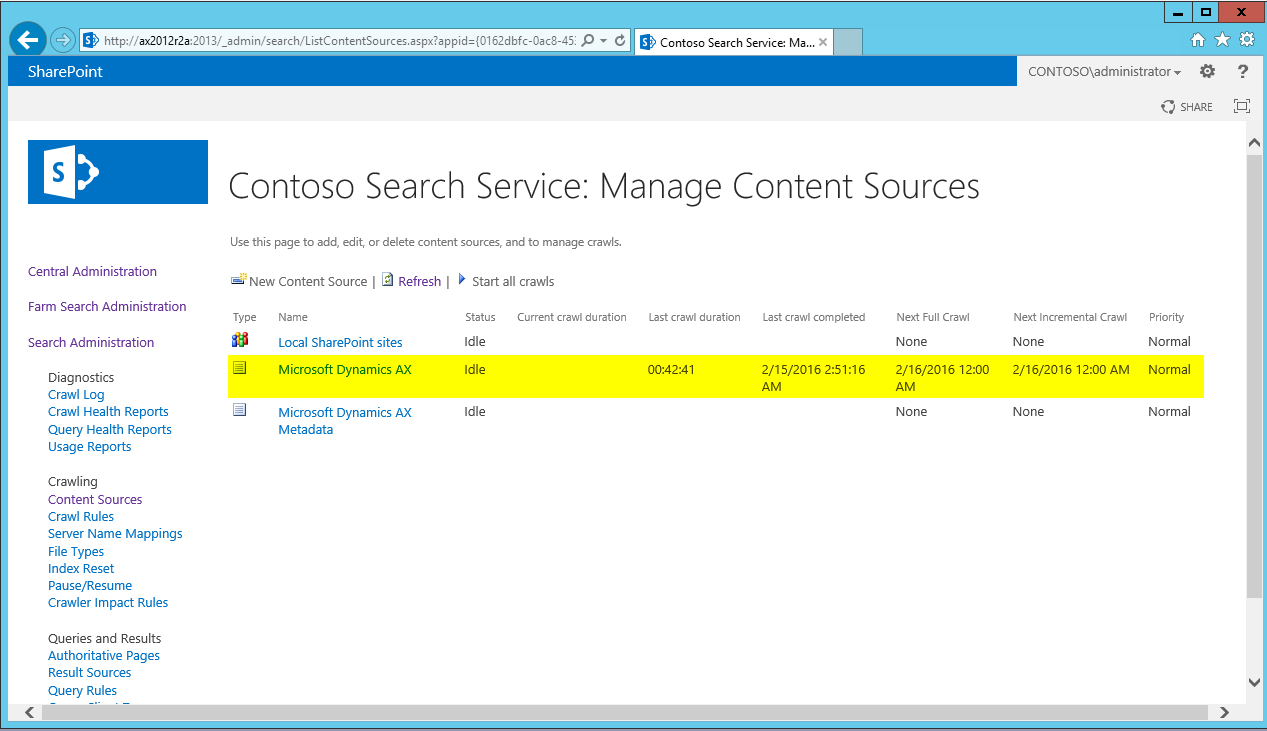

In addition, a periodic search process interval needs to be setup.

Additional information can be for the global search functionality can be found on the following sites: site1, site2.
